WELDING TECHNOLOGIES

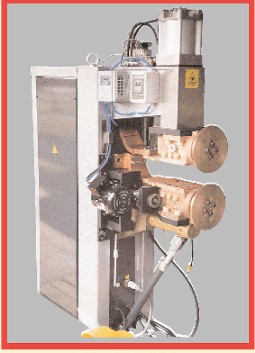

SEAM WELDER Model WT-SW-100

WELDING TECHNOLOGIES HAS DEVELOPED A SEAM WELDER, TO SATISFY THE INDUSTRY DEMAND FOR RELIABLE AND COST EFFECTIVE MACHINES.

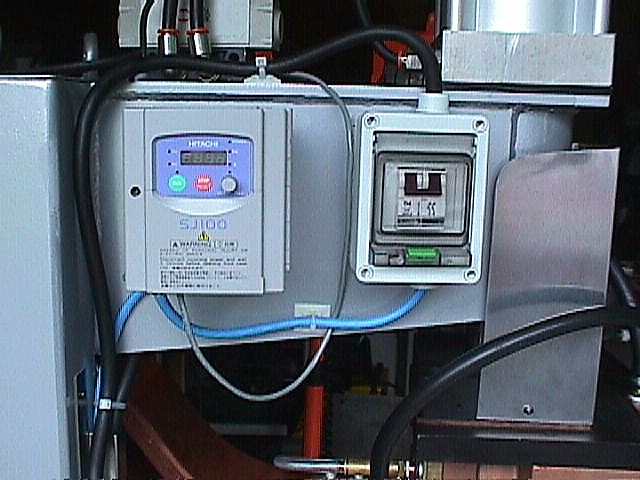

	Inverter type control for precise control of acceleration and speed during welding. Wheels start rotating after they contacted the part and pressure is built up.
	Constant current weld controller/monitor ATek IV has capability of 15 weld schedules.

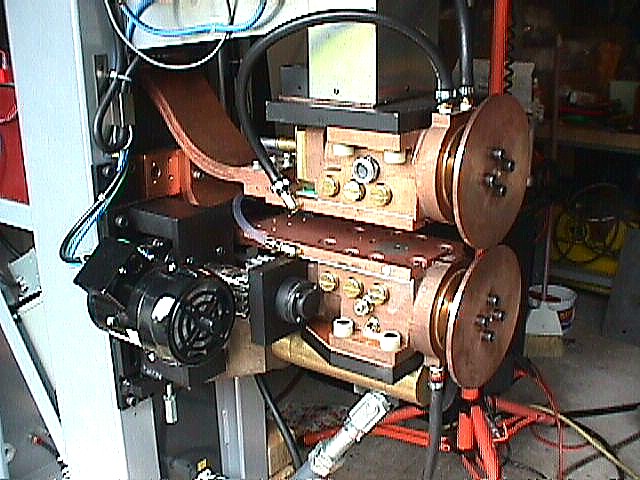

	WT specially designed Seam Welding Heads are featuring silver plated contacts with the spring load for fine tuning and compensation for wear.

Latest developments in control techniology and material science are incorporated into a design. Silver Greaze™ has been specially developed for this application.

Rated Power at 50% duty cycle: ...............................................................  100kVA Welding Current Range(no metal): ................................................2.0kA to 25.0kA Welding speed:................................................................................20 to 150 in/min Air Pressure: ................................................................................................... 85 PSI Max stroke: ..............................................................................................................2“ Welding Wheels: .............................................................................................. 8“ dia Water cooled, silver plated sliding contacts  Max welding capacity on mild steel: ......................................................2mm+2mm Dimensions:   ............................................................................14"W x 51"L x 63"H Throat  ........................................................................................Depth 21", Height 3" Weight  ........................................................................................................1500LBS

Call Welding Technologies for the price and delivery.

Watch video of application 1
Watch video of application 2

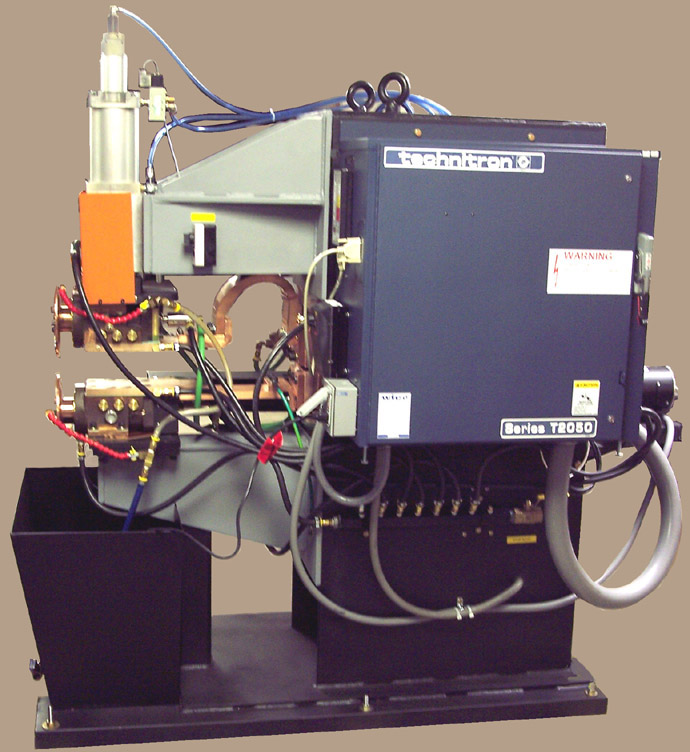

HEAVY DUTY WELDER  WT-SW-100HD

TECHNICAL DATA Rated Output at 100%  - 100.0KVA Primary Voltage, V   -       460VAC Secondary Voltage, min V -  7.45V Secondary Voltage, max V  - 11.28V Sec. Short circuit current, KA  - 200.0KA MAX Weld Current, KA   - 70.0KA Continuous Welding Current  -   9.0KA Delayed Fuse, A  -   400.0A Weld Stroke, in   -        3.5 in Tip Force, lbs (@ 80PSI)  -      1,350 lbs Cooling Water Flow, GPM  -   12.0GPM Dimensions, Inches   L:79.0 in  W: 36.0 in  H: 76.0 in Weight, lbs   - 2,700 lbs
